Automatic fast speed PVC uprolling door

• Material: cold rolled steel/stainless steel frame + PVC shutter

• Size: Max. 10X10m

• Color: White, Red, Blue, Gray or customized

• Voltage/Haze: 110V/50Hz; 220V/50Hz; 380V/60Hz

• Feature: Rapid uprolling PVC shutter

• FOB Qingdao: USD 40/SQM

• Leading time: 20-30 days

• Package: wooden box packing

INQUIRE

Add To Inquire Cart

DETAILS

◆ Product Description
Automatic Rapid PVC Soft Fabric Roller Shutter Door
Electric High Speed Performance Fast Action uprolling door
Industrial Remote Control Quick Overhead uprolling Doors

High speed shutter door, also called fast soft door,which is a barrier door with rapid rise and fall.And its main function is quickly isolation, thus to ensure the air quality of the workshop without dust. High speed shutter door has the functions of heat preservation, cold preservation, insect-proof, windproof, dust proof, sound insulation, fire proof, anti odour, day lighting and so on. It is widely used in food, chemistry, textile, electronics, supermarket, freezing, logistics, storage and other places. It can meet the need of high performance logistics and clean place, saving energy for shutting down automatically. What's more, it can improve working efficiency, create better working environment and so on.

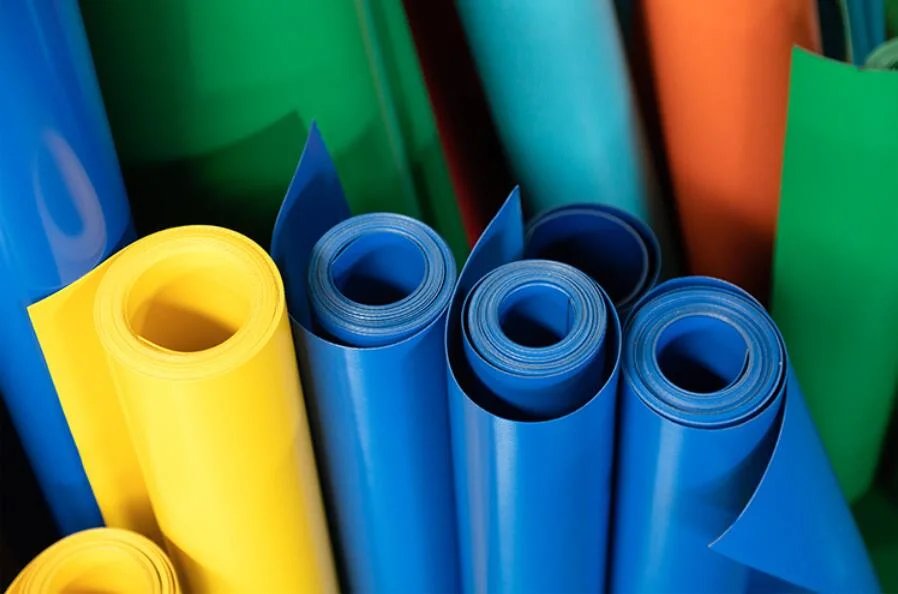

◆ Raw Material

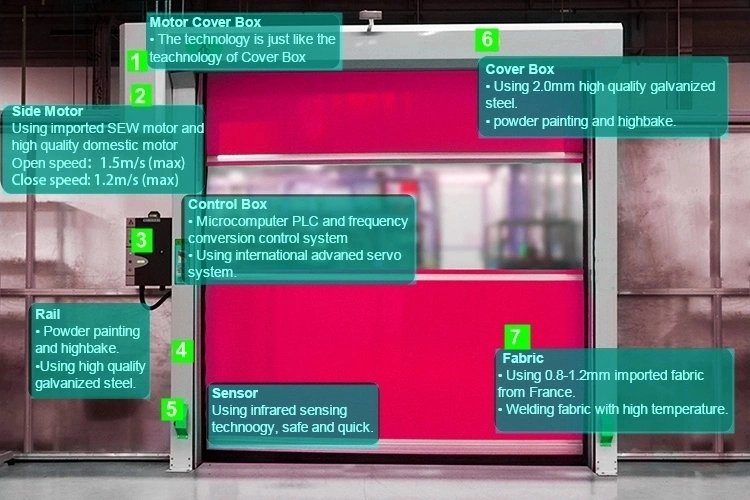

◆ Structures:

◆ Specification.

1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel frame / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / Powever / Damar
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W / 5500W
10. Control box: HOLIP / DFL
11. Safety performance: Airbag / Photo cell

12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..

◆ Features:

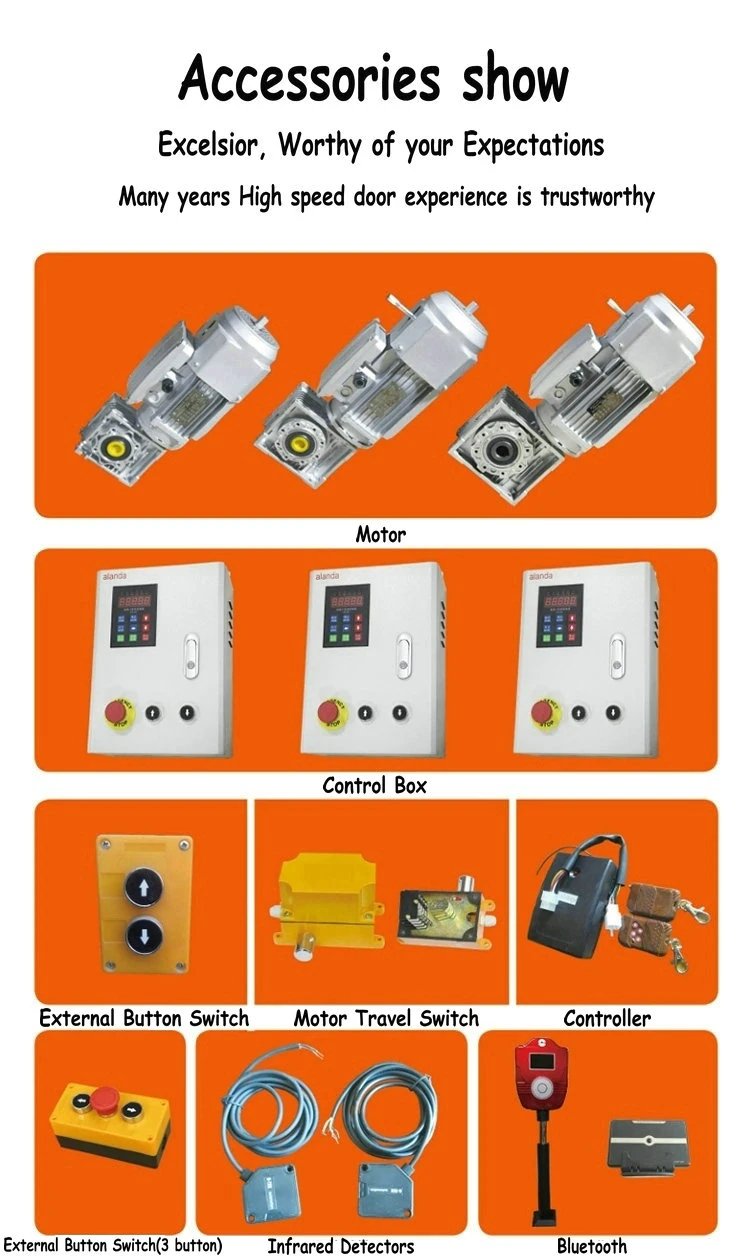

Control System	DFL PLC / Holip PLCand other components.
Dynamical Systems	Motor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system)
	Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
	Power: 0.75kw ~ 3.0kw(According to the size of door)
Fast Speed Gate Construction
Framework	In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
Rolling Drum	2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
Cross Bar	Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
Color	Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
Transparent Window	Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.
Command System	Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
Safety System & Seal
Photocell Sensor	Installed ont he side track with emergency rebound opening when sensing obstacles.
Safety edge bottom	When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
Emergency stop protection	With emergency stop button on the main control board.
Seal	Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
Technical Parameter	Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
	Max Size: 10m width * 15m height
	Opening & Colsing speed: 0.7~1.5m/S
	Operation Frequency: 1000~1500 Cycles/Day
	Wind load: 15m/S
