Steel Grating-1

• Grade: Q235B/Q355B/Q195

• Surface: HDG, painting, black

• Grating size: 30X100, 40X100, 30X50, 40X50

• Length: 1000-12000mm

• Quality Control: ISO 9001

• FOB Qingdao: USD 900-1000/Ton

• Production Capacity: 600 tons/Month

• Leading time: 20-40 days

• Package: Steel straps bundled

INQUIRE

Add To Inquire Cart

DETAILS

◆ Company Profile

Qingdao SuperM Steel Co,.Ltd specialized in manufactring various kinds of steel grating,stainless steel grating and Aluminum grating.We have good reputation all over the world,our grating has been exported to over 30 countries,including North America,southeast Asia,middle east,Europe,Africa,Australia and South America etc.

◆ Product Description

Hot DIP galvanized steel grating has three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
3) Cross Bar Pitch (center to center):
38.1, 40, 50, 60, 76, 80, 90, 100, 101.6, 102, 135mm and so on
4) Material:
Mild Steel (Low Carbon Steel) or Stainless Steel
5) Surface Treatment:
Untreated, Painting or Hot DIP Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

Grating Type	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Process technical	Machine press welding,hand welding
Material	Steel,Stainless steel 304 /316,Aluminum 6063 T5/T6
Bearing Bar (width*thickness)	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Cross Bar Size	6x6, 8x8mm (twisted bar or round bar)
Cross Bar Pitch	38.1, 50, 60, 76, 80, 100,120mm
Surface treatment	Hot dip galvanized (HDG),Painting,Untreated,Powder coated
Application	Trench cover,drainage cover,walkway,platform,stair step
Lead time	15-45 days

◆ Detailed Photos

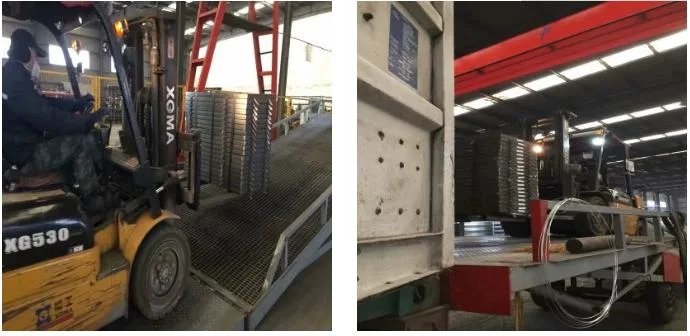

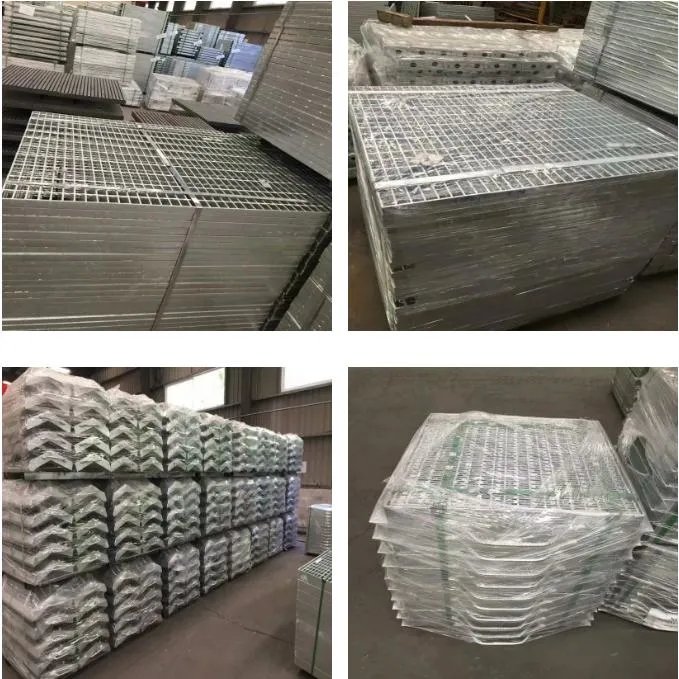

◆ Packaging & Shipping
