32M*60M H9
Steel grade：Q235/Q355
Surface: 100% hot dipped galvanized treatment
Width: 32m
Eave height: 6m 7m 8.5m 9m 10m 12m 15m
Length: 30-120m with increasing 6m per baying
Light weight steel frame with perfect anti rusting protection.
Guarantee: min. 25 years
DETAILS
Specifications：
Steel structure workshop/warehouse/storage shed
Surface: Hot Dipped Galvanized Zinc Coating Min. 600Gram/SQM.
Total SQM:1920SQM
Roof & Wall: single colorbond metal sheet 0.5mm or thermal insulation sandwich panel, thick 50/75/100mm Rockwool mineral insulation material.
Doors: 4 pcs automatic uprolling doors
Windows: 22 pcs 2m X 4m Aluminum alloy sliding windows with tempered glazing
Design parameter:
Wind load: Max. 300Km/H
Roof snow load: Max. 2.0Kn/SQM
Roof slope: 10-25%
Earthquake scale: Class 9
Roof with or without light translucent FRP Panel, thick 2.0mm
Wall with light translucent FRP Panel, thick 2.0mm
Gutter: Galvanized metal sheet cold bending gutter, thick 2.0mm
Downpipe: UPVC material, OD 110mm

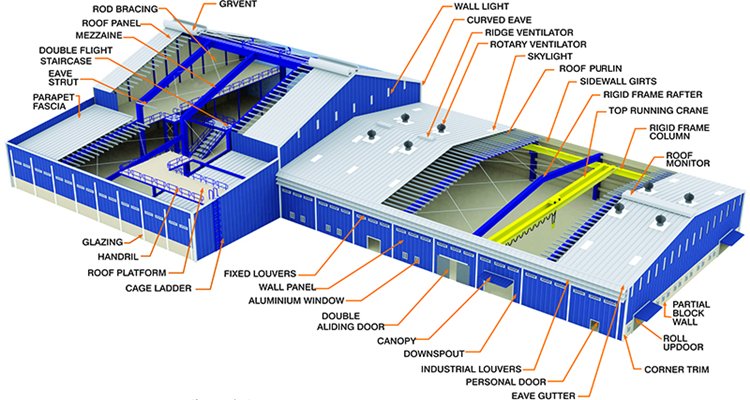

Building factors:
Project reference:
